Foundation Design: The Essential Guide to Soil Mechanics and Structural Integrity

The Foundation Design Process: An Integrated Geotechnical and Structural Approach

Our process is systematic, ensuring every design decision is backed by solid data and robust structural calculation.

Phase 1: The Crucial Role of Geotechnical Investigation Reports (GIRs)

Foundation design cannot commence without a thorough site investigation. The Geotechnical Investigation Report (GIR) is our blueprint, providing essential data that dictates the feasibility and type of foundation required.

• Soil Stratification and Classification: Identifying layers of clay, sand, silt, and rock.
• Groundwater Table: Determining the depth of the water level, which significantly affects bearing capacity and dictates drainage and waterproofing needs.
• In-Situ Testing Data: Standard Penetration Test (SPT) N-values, Cone Penetration Test (CPT) results, and laboratory tests for shear strength and compressibility.

Phase 2: Fundamental Geotechnical Concepts: Bearing Capacity and Settlement

The core of geotechnical analysis involves two critical checks:

1. Bearing Capacity: The maximum average pressure that a foundation can apply to the soil without causing shear failure in the soil. We calculate the Allowable Bearing Pressure (ABP), which incorporates a mandatory factor of safety against ultimate shear failure.
2. Settlement Prediction: The downward movement of the foundation. We limit Total Settlement and, more importantly, Differential Settlement (uneven movement between adjacent columns). Differential settlement can induce severe, unplanned stresses in the superstructure and lead to cracking in finishes and structural members.

Shallow Foundations: Design for Optimal Efficiency

Shallow foundations are those systems placed at a depth less than or equal to the width of the footing, typically used when competent load-bearing soil is available near the surface.

Types of Shallow Foundations and Selection Criteria

• Spread Footings: The most common and cost-effective type, supporting a single column or wall. Design focuses on punching shear, one-way shear, and flexural bending moments.
• Combined and Strap Footings: Necessary when column spacing is tight or when a column is near a property line, necessitating an eccentric footing. The strap/cantilever footing connects the eccentric footing to an interior one to maintain the resultant force centrally.

Mat and Raft Foundations: The Solution for Low Bearing Capacity

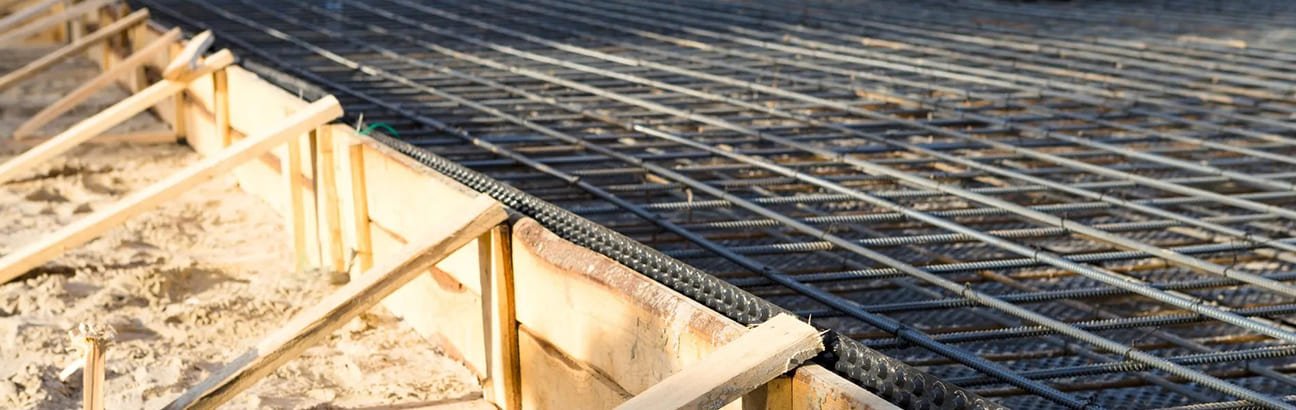

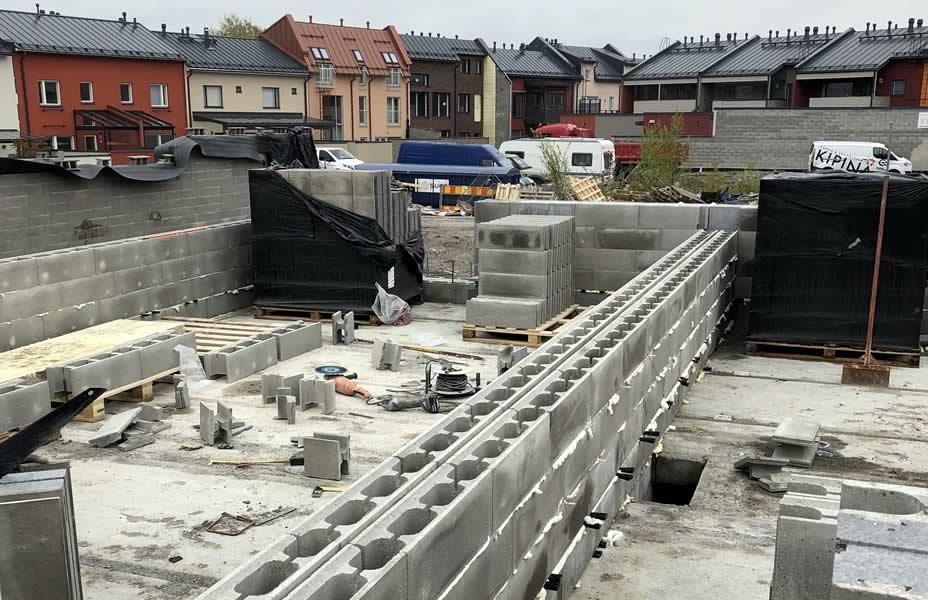

A Mat or Raft Foundation is a large, continuous concrete slab covering the entire area beneath the structure.

• Necessity: Chosen when individual spread footings would overlap, or when the soil bearing capacity is critically low, requiring maximum load distribution. Rafts are highly effective at minimizing differential settlement across the entire building footprint.
• Advanced Modeling: Designing a raft requires treating it as an inverted slab and beam system, typically modeled using sophisticated Finite Element Method (FEM) software. The soil interaction must be accurately simulated using soil springs (Winkler’s model) to predict soil pressure distribution.

Detailed Structural Sizing and Punching Shear Check

Once the geotechnical analysis dictates the size, the structural engineer must design the concrete elements. This phase is governed by the ultimate limit state checks:

1. Flexural Design: Sizing the main reinforcement to resist the bending moments induced by the upward soil pressure.
2. Punching Shear (Two-Way Shear): The critical check for footings and rafts. The required thickness of the concrete slab is often dictated by this check to ensure the column load does not “punch through” the footing.
3. One-Way Shear: Verifying the shear strength across the entire width of the footing.

For specific standards regarding concrete strength, cover, and detailed reinforcement bar spacing and lap requirements, refer to our specialized guide on Concrete Structure Design: Analysis and Detailing.

Deep Foundations: Engineering for Challenging Substrata

Deep foundations are mandatory when shallow soil strata are inadequate, requiring the transfer of load to deeper, stronger soil or bedrock.

Classification and Load Transfer Mechanisms of Piles

Piles are long, slender members driven or cast into the ground. They transfer load via two primary, combined mechanisms:

1. Friction Piles: Rely on the shear resistance generated along the shaft’s surface area. Common in thick layers of cohesive soil (clay).
2. End-Bearing Piles: Rely on the compressive resistance at the toe (bottom tip) of the pile, often socketed into rock or very dense strata.

Complexities of Pile Group Action and Negative Skin Friction

• Group Action: When piles are grouped together, the efficiency of the group is reduced due to overlapping stress bulbs in the soil. Designers must apply a Group Efficiency Factor to prevent overestimating capacity.
• Negative Skin Friction: This occurs when a settling soil layer adheres to the pile shaft, imposing a massive downward drag force that consumes the pile’s capacity. Designing to mitigate or account for this drag load is essential.

Advanced Analysis: Piles under Lateral and Uplift Loads

Piles must also be structurally designed for non-axial forces:

• Lateral Design: Piles under seismic or wind loads must resist lateral movement. They are modeled as a beam on an elastic foundation using parameters like the subgrade reaction modulus (ks​) derived from geotechnical data.
• Uplift Design: Critical in areas with high water tables or expansive soils. The design ensures the pile’s weight plus resisting soil friction is greater than the maximum tensile uplift force.

Specialized Systems and Geotechnical Challenges

Modern projects often encounter difficult site conditions that require tailored, non-conventional foundation solutions.

H3: Foundations in Seismically Active Zones and Liquefaction

In high seismic regions, the Foundation Design must account for soil behavior during an earthquake. This includes checking for liquefaction—where saturated loose sand temporarily loses all shear strength.

• Mitigation: Solutions include ground improvement techniques (e.g., stone columns, deep dynamic compaction) or designing deep foundations that bypass the liquefiable layer entirely.

Ground Improvement Techniques: Enhancing In-Situ Soil

When the upper soil layer is marginally inadequate, it may be more economical to improve the soil rather than installing costly deep foundations. Techniques include:

• Vibro-Compaction: Used to densify granular soils.
• Jet Grouting: Injecting high-pressure cement grout to create solidified columns within the soil mass, significantly enhancing strength and reducing permeability.

Connection Engineering: The Structural Interface with the Superstructure

The integrity of the load path relies entirely on the successful transfer of forces between the foundation (concrete) and the elements above (steel, concrete, or timber).

H3: Designing the Steel Interface: Base Plates and Anchor Rods

The connection of a steel column to a concrete foundation requires the design of a steel base plate and secured anchor rods.

• Base Plate: Designed to spread the large column loads (compression and moment) evenly onto the concrete pier.
• Anchor Rods: Must be calculated to resist uplift forces and moments, with specific requirements for their embedment and tension capacity as dictated by AISC and ACI codes.

Proper design of this rigid or pinned connection is fundamental to the stability of the frame and is explored further in our guide on Advanced Steel Structure Design Principles and Connection Engineering.

Connecting Concrete Columns and Seismic Detailing

For concrete columns, continuity of the reinforcement is achieved via dowel bars (or starter bars) extending from the footing up into the column.

For detailed information on determining the required lap splice lengths, confinement reinforcement (ties/spirals) in the critical connection region, and adherence to seismic detailing (capacity design), consult our guide on Concrete Structure Design: Analysis and Detailing.

Foundation Design for Specialized Industrial and Timber Structures

Industrial projects, such as Steel Hall Design, often require foundations optimized for heavy, vibrating machinery and wide, long-span column loads. Similarly, Timber Structure Design requires foundations to manage moisture and elevate the wood structure above grade to prevent decay, necessitating specialized steel connectors and brackets.

Specialized structural systems demand unique foundation considerations; learn more in our resource on Expert Guide to Steel Hall Design and Fabrication.

Explore the best base connection practices for sustainable materials in our guide to The Future of Timber Structure Design and Mass Timber Construction.
